openpath expansion boards that uts group offers

UTS Group supplies, installs, repairs, and maintains products and services in advanced security and locksmith. Openpath is one of the brands that we offer. We help you customize your access control experience by building your own system from scratch. Start with a Controller Board, then add Expansion Boards to fit your needs.


Cloud Security

Cloud Sync

Easy to Install

Fail Safe

Interoperability

Monitoring

Explandable

Reliability

Easy Management

All Openpath Expansion Boards that we offer come with a Lifetime Warranty

Core Access Control Panel Board

Works with Openpath expansion boards to securely make all entry decisions. Powered using 12V or 24V supply. Compact size fits in most enclosures. Supports 3 expansion boards or 24 doors

Install Options

Installation:Included mounting bracket fits in most enclosures easily
Size:5.9 x 8.9 cm (2.3 x 3.5 in)
Weight:Approx 60 g (2.1 oz)
Operating Temperature:32° to 122°F (0° to 50°C)
Operating Humidity:5% to 85% relative, non-condensing
Communication Ports:10/100 Mbps Ethernet & 4 USB expansion ports

Tech Specs

Operating Voltage:12-24VDC
Operating Current:0.7A @ 12VDC & 0.4A @ 24VDC
Tamper Detection:Input connects to enclosure tamper switch
Compliance:

4-Port Expansion Board

The 4-Port Board connects to the Access Control Core. Supports 4 Readers, 4 Door Relays, 4 Contact Sensors, and 4 REX Sensors

Install Options

Installation:Install inside an enclosure and connect to the Openpath Core
Size:3.3 oz (94 g)
Weight:4.5 x 4.9 in (11.5 x 12.5 cm)
Operating Temperature:32° to 122°F (0° to 50°C)
Operating Humidity:5% to 85% relative, non-condensing
Communication Ports:USB Port

Tech Specs

Operating Voltage:12-24VDC
Operating Current:0.5A @ 12VDC & 0.3A @ 24VDC
Compliance:
REX Sensors:4 REX Sensors, nominal 5VDC, 1kohm to each input
Contact Sensors:4 Contact Sensors, nominal 5VDC, 1kohm to each input
Auxiliary Inputs:4 input lines with EOL monitoring—configurable for use with Wiegand readers,
Contact Sensors, or other functions
Readers:Up to 4 Openpath Readers
Relays:Door: 4 Relays, 24VDC, 5 Amp (resistive)
Auxiliary: 2 Relays, 24VDC, 1 Amp

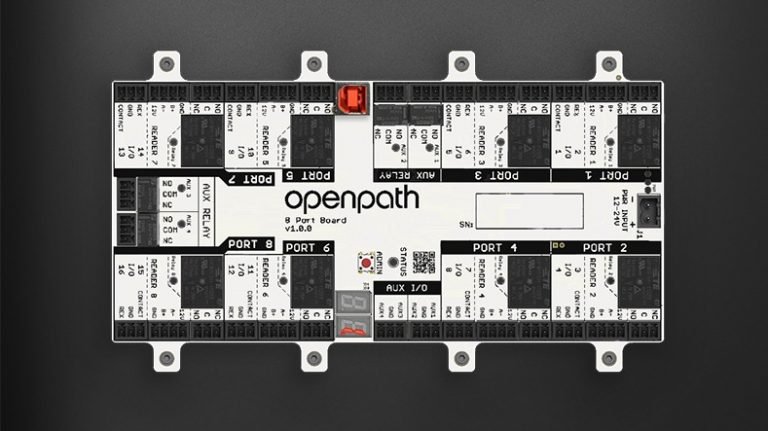

8-Port Expansion Board

The 8-Port Board connects to the Access Control Core. Supports up to 8 Readers, 8 Door Relays, 8 Contact Sensors & 8 REX Sensors

Install Options

Installation:Install inside an enclosure and connect to the Openpath Core
Size:7.6 oz (215 g)
Weight:4.5 x 8.75 in (11.5 x 22.5 cm)
Operating Temperature:32° to 122°F (0° to 50°C)
Operating Humidity:5% to 85% relative, non-condensing
Communication Ports:USB Port

Tech Specs

Operating Voltage:12-24VDC
Operating Current:0.6A @ 12VDC & 0.3A @ 24VDC
Compliance:
REX Sensors:8 REX Sensors, nominal 5VDC, 1kohm to each input
Contact Sensors:8 Contact Sensors, nominal 5VDC, 1kohm to each input
Auxiliary Inputs:4 input lines with EOL monitoring—configurable for use with Wiegand readers,
Contact Sensors, or other functions
Readers:Up to 8 Openpath Readers
Relays:Door: 8 Relays, 24VDC, 5 Amp (resistive)
Auxiliary: 4 Relays, 24VDC, 1 Amp

16 I/O Elevator Board

Optional expansion board for the Smart Hub with 16 relay module. It is available in the Elevator Core Series Smart Hub (20ENT-SYS-24V) or can be purchased as a standalone board.

Install Options

Size:Approx 13 x 9 cm (5 x 3.5 in)
Easy to Install:Includes removable contact terminal blocks for convenient wiring
Operating Temperature:32° to 122°F (0° to 50°C)
Operating Humidity:5% to 85% relative, non-condensing
Communication Ports:USB Port

Tech Specs

Operating Voltage:12-24VDC
Operating Current:12V: 825 mA Max (with 2 Openpath Readers)
12V: 325 mA Max (with no readers)
24V: 470 mA Max (with 2 Openpath Readers)
24V: 190 mA Max (with no readers)
Compliance:Conforms to UL 294
Readers:Up to 2 Openpath Readers
Relays:16 relays, 60VDC Max
24VDC, 1 Amp (resistive)
125VAC, 0.5 Amp (resistive)
General Purpose Inputs:16, 3V-24VDC

Controller Board

The Controller Board is a standalone access control board. Supports up to 4 entries. It can be added to Smart Hub or used on its own.

Install Options

Size:10 x 22 cm (4 x 8.6 in)
Weight:212 g (7.5 oz)
Easy to Install:Includes removable contact terminal blocks for convenient wiring
Operating Temperature:0° to 50°C (32° to 122°F)
Operating Humidity:5% to 85% relative, non-condensing
Communication Ports:10/100 Mbps Ethernet & 3 USB expansion ports

Tech Specs

Operating Voltage:10-14VDC
Operating Current:2000 mA MAX (with 4 Openpath Readers)
1000 mA (with no Openpath readers)
Compliance:
REX Sensors: 4 REX Sensors, nominal 5VDC, 1kohm to each input (resistors built into Controller Board)
Contact Sensors:4 Contact Sensors, nominal 5VDC, 1kohm to each input (resistors built into Controller Board)
Readers:Up to 4 Openpath Readers & Up to 4 Wiegand Readers
Relays:4 Relays, 24VDC, 5 Amp (resistive)
