RBH ACCESS CONTROL OFFERED BY UTS GROUP

UTS Group supplies, installs, repairs, and maintains products and services for advanced security and access control. RBH Access Technologies is one of the brands that we offer, including RBH Access Control Products.

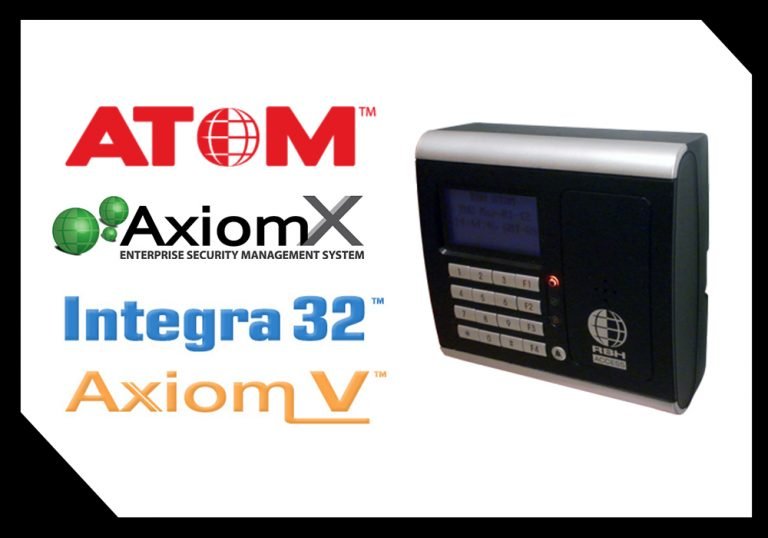

Single Door IP Based Access Controller

It can either work standalone without connecting to the PC or with a web browser using RJ-45 port.

FEATURES

5000 users
Secure side control unit – high security
Read in Read out
Card, Pin or Card + Pin
30,000 Event Buffer
2 Relay Outputs ( Lock & Sounder)
2 Inputs (RTE & Door Contact)
Standalone operation
User-friendly LCD display
Web-based interface
Flash upgradeable firmware

Integra32 Security Management System

It seamlessly integrates Access Control, Intrusion Alarms, Elevator Control, CCTV & DVR, Biometric Authentication, Photo ID, Building Automation, and ON and Offsite Alarm Monitoring, into elegant and versatile building management and security system. Integra32’s advanced .NET architecture is specifically designed to take advantage of Microsoft Windows operating systems. This user-friendly software ensures that security management needs are met easily and economically with minimal training.

With a fully-featured client or Web browser access to system management, Integra32 addresses all security management needs for small and medium-sized businesses and organizations. There is no limit to system expansion with an in-place upgrade path to our AxiomV Enterprise Security Management System.

FEATURES

Integration with RBH View
Integration with RBH Biometric readers
Mobile App
Web Client
Upgrades within the same version
Support for Blueline Readers
Support for Free UHSC mobile credentials
Support for IOC8

AxiomV Enterprise Security Management System

These are meant for large multi-site/multi-tenant applications, seamlessly integrates Access Control, Alarm Monitoring, and Video Surveillance into elegant and versatile building management and security system. Bringing together different aspects of security management can be challenging. AxiomV stands up to the challenge by combining Access Control and Alarm Monitoring with Video, Building management automation, Asset tracking, Guard tour and Visitor management, and many more important security functions into an elegant and versatile security management solution.

Harnessing the power of the Microsoft SQL Server™and powerful MS .NET™ framework, AxiomV is positioned on the cutting edge of modern security technology. Adding new applications and solutions is easy due to the flexibility of the underlying software and hardware platform.

Solid architecture and a highly customizable, flexible user interface provide powerful tools for Enterprise Security management. Robust and highly sophisticated hardware implements a variety of flexible solutions at a firmware level. Designed and manufactured “in house”, AxiomV offers unmatched longevity and will ensure a long life span for security investment. AxiomV provides a sophisticated yet affordable solution for systems of all sizes.

AxiomV™ Enterprise EditionIt is built on multi-server architecture, where discreet servers are implemented across the corporate network with “Hot standby” and automatic “Fail-over” features. In case of one of the communication and/or data servers going offline, there is a fully synchronized, up-to-date standby server ready to take over.
Communications ServerEach Communications Server handles multiple networks of UNC-500s / UNC-100s via a wide variety of communication technologies. Each one of those NC networks can have multiple connections to a Comm. Server. Our unique architecture allows these backup channels to connect to both “Master” and “Slave” UNCs/NCs constituting a network. This way, not only the loss of a communication channel is sustainable, but also a failure of one or more of the Network Controllers. The “Slave” controller will assume the role of a “Master” as the backup communications channel activates.
D-NETIt connects devices such as RC-2 Reader Controllers IOC-16 Input/Output controllers to the UNC-500 / UNC-100. 38.4 Kbps, RS- 485 circuit runs on a “Class A” bi-directional communication loop of twisted, shielded copper pair. UNC-500 / UNC-100, 4-8 of the RC- 2s and 16 IOC-16 controllers act as boosters and repeaters, combining the 3,000’ distances between individual devices into a 15,000’ loop. Due to its bi-directional nature, D-NET can sustain cable sabotage and failure of a device.
C-NETC-NET connects up to 15 UNC-500 / UNC-100s to each other creating a network of NCs. 2.5 Mbps, ARCNET packet-based, supervised and self-adjustable C-NET runs on a “Class A” bi-directional communication loop of twisted, shielded copper pair. Each UNC-100 acts as a booster and a repeater, combining 2,000’ distances between individual NCs into a 12,000’ loop. Due to its bi-directional nature, C-NET can sustain a C-NET cable sabotage and a failure of a UNC-500 / UNC-100.

AxiomX Enterprise Security Management System

Bringing together different aspects of security management can be challenging. Axiom stands up to the challenge by combining Access Control and Alarm Monitoring with Video, Building management automation, Asset tracking, Guard tour and Visitor management, and many more important security functions into an elegant and versatile security management solution.

Harnessing the power of the Microsoft SQL Server™ and powerful MS .NET™ framework, Axiom is positioned on the cutting edge of the modern security technology. Adding new applications and solutions is easy due to the flexibility of the underlying software and hardware platform.

Solid architecture and the highly customizable, flexible user interface provide powerful tools for Enterprise Security management. Robust and highly sophisticated hardware implements a variety of flexible solutions at a firmware level. Designed and manufactured “in house”, Axiom offers unmatched longevity and will ensure a long life span for security investment. Axiom provides a sophisticated yet affordable solution for systems of all sizes.

FEATURES

Great New User ExperienceTile or Traditional Views of Operation
Improved Web ClientReal-time Monitoring
Improved Hardware set-upMore Robust Communications
Improved Client Installation

ADVANTAGES

Access ControlParking
Alarm MonitoringTime & Attendance
Video IntegrationPhysical Identity and Access Management
Building AutomationAdvanced Biometrics
Asset TrackingWireless Locks
Guard TourMobile Apps
Dynamic MappingEBAR
Visitor ManagementAPI Available

WE ARE EXPERTS IN:

Access Control | Automatic Doors | Security Cameras | Locksmith | Intercom
