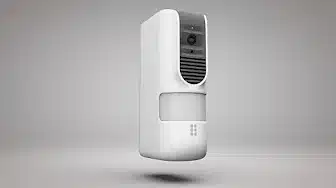

MyShield All-in-One Smoke Security System

MyShield All-in-One is a ground-breaking smoke-generating intervention solution that ensures immediate response to intrusions, making it an essential tool for property owners who need robust, reliable security without the complexity of a traditional system. Can act as fully independent security monitoring and intrusion systems as well as a part of existing security alarm system integrated through cloud or wire input.

Advantages:
  • All-in-one System can operate as fully independent alarm and intervention security solution.
  • Standalone or Integrated capabilities allow easily integration with existing security systems or using the device for a fully independent, standalone user-facing operation.
  • Near-Zero Response Time allows to force intruders out in less than a minute before first responders arrive.
  • Reduced False Alarms through built-in HD camera that provides real-time video verification of events.
  • LTE-M Communication channels ensure continuous operation, independent of local communication infrastructures.
  • Easy Installation and battery-powered capabilities allow for near-zero maintenance.
Get Pricing
Key Features:
  • Verification by central monitoring station or phone app before deploying smoke
  • HD camera
  • Voice announcements to warn off intruders
  • PIR motion detection
  • Multiple tamper mechanisms
  • Battery or AC adapter powered
  • Easy installation integrated wall mount
  • Remote OTA software updates
  • Built-in self-test reporting
  • Wired input allows activation by third-party devices
  • Multi-device and multi-user capabilities



PDF
  • Specifications
  • Certifications, Approvals or Tests
  • Part Numbers
  • Specifications

    Connectivity

    • LTE Cat-M1, supporting MQTTs and HTTPs

    Motion Sensor

    • PIR: FOV 155° up to 12m (39 ft.)
    • PIR (with pet inmune): FOV 146° up to 10m (33 ft.)

    Interfaces

    • Wired Input
    • LED Signals

    Tamper Mechanisms

    • Unmounting from wall
    • Smoke canister removal
    • Wired-Input cable cut – (reliant on in-line resistor being mantained)

    Power

    • Operating Voltage: 9VDC
    • Batteries: Six CR123A
    • Battery life: Up to two years
    • External power: 12VDC – Optional

    Audio

    • Microphone: MEMS-type digital
    • Speaker: 40mm, 4 Ohm, 3W

    Video Capture

    • Camera: HD CMOS
    • Viewing angle (H x V): 140° x 80°
    • Daylight range: 12 m (39.4 ft.), Darkness range: 6 m (19.7 ft.)
    • Color night recording with white LED
    • Resolution: Up to 1280 x 720 pixels with H.264 encoding

    Dimensions

    • Size (H x W x D): 208 mm (8.2 in.) x 132 mm (5.2 in.) x 78 mm (3.1 in.)
    • Weight: -1 kg (~2.2 lbs.) including batteries and smoke canister

    Environment

    • Storage ambient temperature range: -20°C to 70°C (-4°F to 158°F)
    • Operating ambient temperature range with battery: -10° C to 55° C (14°F to 131°F)
    • Operating humidity: Up to 95% non-condensing
    • Water and dust resistant: IP21 compliant

    Smoke Canister

    • Smoke deployment duration: approximately 30 seconds
    • Dimensions (D x H): 71 mm (2.8 in.) x 131 mm (5.1 in.)
    • Weight: 400 g (0.88 lbs.) with saturable volume 70 m² (2472 ft³)
    • Storage ambient temperature range: -20°C to 75°C (-4°F to 167°F)
    • Life span: Single use with expiration – 5 years from production date
  • Certifications, Approvals or Tests
    • EN 50131-1:2006 + A3:2020
    • EN 50131-13:2020 Grade 2 (tested)
    • EN 50131-6:2017 + A1:2021 – Type C
    • EN 50130-4:2011 + A1:2014
    • EN 50130-5 Environmental Class II
    • EN 50131-10: 2014
    • EN 50136-2:2013 + A1:2023 SP3
    • EN 62368-1
    • EN 61000-6-3
    • EN 301 489-1
    • EN 301 489-3
    • EN 901-908-CAT-M
    • EC category: P1 (canister)
    • UN 0432 class code 1.4S (canister)
  • Part Numbers
    • MyShield: ES900MS
    • Smoke canister: ESPL06219
    • Simulator canister for installation: ES900CANS-GN-M02
    • Simulator canister for demo: ES900CANS-GN-M01
