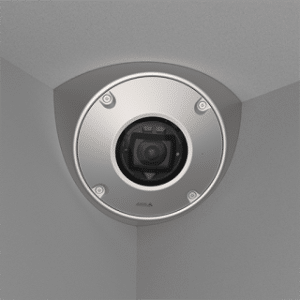

AXIS Q9216-SLV Network Camera
Impact-resistant anti-ligature camera
Overview
- Anti-ligature, robust (IK10+)
- Corner camera– no blind spots
- WDR and invisible IR (940 nm)
- Compact design – easy to install
- Zipstream supporting H.264 and H.265

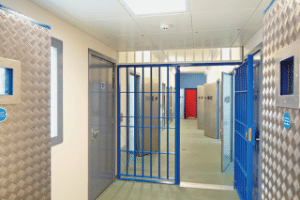

AXIS Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera specially designed to provide a wide field-of-view and ensure no area is left uncovered. Available in white and elegant stainless-steel, this low power consuming camera is ideal for high-security installations such as in prisons and psychiatric wards.
See It All – Day and Night
AXIS Q9216-SLV offers 4 MP video quality and can cover 125 degrees horizontally and 95 degrees vertically, with no blind spots. Ideal in prison cells, it features 940 nm invisible IR illumination for unobtrusive surveillance in total darkness that won’t irritate or provoke the occupant.* Wide Dynamic Range (WDR) ensures clarity even when there’s both dark and light areas in the scene. And, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements without compromising image quality.
Occupant Safety and Privacy
With a ligature-resistant (anti-ligature) design, this robust camera can help prevent self-harm, especially important in high-security installations. The vandal-resistant IK10+ rated casing also offers IP66-rating for protection from dust and water. For added peace of mind, it includes a tampering alarm as well as shock and casing open detection so you can be informed if there’s any attempt to interfere with the camera. It features a removable built-in microphone which can be mounted if audio surveillance is required. Furthermore, AXIS Q9216-SLV includes an indication LED to see if the camera is active or not as well as polygonal privacy masking ensuring occupant privacy is respected.
Enhanced Security Features
This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware ensures that only authorized firmware is installed and guarantees that it hasn’t been compromised. Furthermore, it includes a Trusted Platform Module (TPM, FIPS 140-2 level 2 certified) to ensure secure storage of all cryptographic keys and certificates even in the event of a security breach.
Compact and Easy To Install
This compact camera offers simple and cost-effective installation. The chassis and mounting bracket are specially designed for versatile cable management and mounting options. It’s possible to connect to various conduits and connectivity devices to the back of the camera, such as AXIS T8643 PoE+ over Coax Compact or other compatible media converters and PoE extenders. Additionally, you can mount a conduit top box with space for additional conduits. Once the camera is mounted you can create a ligature-resistant (anti-ligature) installation by applying tamper-resistant security sealant along the edges to permanently seal it to the wall or ceiling. And, even if the back chassis is sealed to the wall, the camera can still be easily removed for service and maintenance.
Easy To Clean and Maintain
For ease of maintenance, the stainless-steel casing is IP66- and IP6k9k-rated to allow cleaning with high pressure, high temperature water jets. If the camera is severely soiled or defaced, the abrasion-resistant two-part front cover is easily removed, and the window can be cleaned more thoroughly with detergent or simple graffiti remover.
AXIS Q9216-SLV Network Camera
Impact-resistant anti-ligature camera
AXIS Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera that delivers 4 MP
video quality. It covers 125 degrees horizontally and 95 degrees vertically, with no blind spots. Featuring invisible
IR illumination, it’s ideal for covert video surveillance in complete darkness. With an IK10+/IP66 rated casing, it also
includes a removable built-in microphone and an indication LED. The camera has polygonal privacy masking, which
allows for flexible coverage and helps ensure occupant privacy is respected. Furthermore, signed firmware and a Trusted
Platform Module (TPM, FIPS 140-2 level 2 certified) help prevent unauthorized access and safeguard your system.
> Anti-ligature, robust (IK10+)
> Corner camera – no blind spots
> WDR and invisible IR (940 nm)
> Compact design – easy to install
> Zipstream supporting H.264 and H.265
AXIS Q9216-SLV Network Camera
Models AXIS Q9216-SLV Network Camera Steel
AXIS Q9216-SLV Network Camera White
Camera
Image sensor 1/2.5” progressive scan RGB CMOS
Lens 2.4 mm, F2.0
Horizontal field of view: 125°
Vertical field of view: 95°
Fixed focus, fixed iris, M12 mount
Day and night Automatically removable infrared-cut filter
Minimum
illumination
Color: 0.23 lux at F2.1
B/W: 0.05 lux at F2.1
0 lux with IR illumination on
Shutter time 1/32500 s to 1/5 s
Video
Video
compression
H.264 (MPEG-4 Part 10/AVC) Main and High profile
H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG
Resolution 2304 x 1728 to 320x 240
Frame rate Up to 30/25 fps (60/50 Hz) in all resolutions
Video streaming Multiple, individually configurable streams in H.264, H.265 and
Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264/H.265
HDMI
Multi-view
streaming
2 individually cropped out view areas
HDMI output HDMI 1080p (16:9) @25/30 fps (50/60 Hz)
HDMI 720p (16:9) @50/60 fps (50/60 Hz)
Pan/Tilt/Zoom Digital PTZ
Image settings Saturation, contrast, brightness, sharpness, WDR, white balance,
day/night threshold, exposure mode, compression, rotation: 0°,
90°, 180°, 270° including Corridor Format, mirroring, text and
image overlay, polygon privacy mask
Audio
Audio streaming Two-way, full duplex
Audio
compression
24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726
ADPCM 8 kHz, Opus 8/16/48 kHz
Configurable bit rate
Audio
input/output
External microphone input or line input, line output, built-in
microphone (removable)
Balanced audio in and audio out is supported
Network
Security Password protection, IP address filtering, HTTPSa
encryption,
IEEE 802.1x (EAP-TLS)
a
network access control, digest
authentication, user access log, centralized certificate
management, brute force delay protection, signed firmware,
protection of cryptographic keys with FIPS 140-2 certified TPM
2.0 module
Supported
protocols
IPv4,IPv6 USGv6, HTTP, HTTPSa
, SSL/TLSa
, QoS Layer 3
DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®
, SNMP
v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP,
IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, SIP, MQTT
System Integration
Application
Programming
Interface
Open API for software integration, including VAPIX® and
AXIS Camera Application Platform; specifications at axis.com
AXIS Video Hosting System (AVHS) with One-Click Connection
ONVIF® Profile G, ONVIF® Profile S, and ONVIF® Profile T,
specification at onvif.org
Support for Session Initiation Protocol (SIP) for integration with
Voice over IP (VoIP) systems, peer to peer or integrated with
SIP/PBX
Analytics Included
AXIS Video Motion Detection, active tampering alarm
Supported
AXIS Digital Autotracking, AXIS Guard Suite including
AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard
Support for AXIS Camera Application Platform enabling
installation of third-party applications, see axis.com/acap
Event conditions Analytics, shock detection, casing open, edge storage events,
supervised external input, audio level, time scheduled
Event actions Calls: answer, end SIP calls, make SIP calls
Upload of images or video clips: FTP, HTTP, HTTPS, SFTP, email
and network share
Notification: HTTP, HTTPS, TCP and email
Audio clips, day-night mode, guard tours, I/O, IR illumination,
overlay text, power saving mode, preset positions, prioritized
text, recordings, SNMP trap messages, status LED, WDR mode
Data streaming Event data
Built-in
installation aids
Pixel counter, adjustable IR illumination intensity
General
Casing Anti-ligature and anti-grip stainless steel casing and
polycarbonate hard-coated dome.
IP66-, IP69-, IP6K9K- and NEMA 4X-rated
IK10+ 50 joules impact-resistant
Steel: Color: Stainless steel
White: Color: White NCS S 1002-B
For repainting instructions of casing and impact on warranty,
contact your Axis partner.
Sustainability PVC free, BFR/CFR free
Memory 1024 MB RAM, 512 MB Flash
Power Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3
Max. 10.8 W
Typical 4.7 W (default IR)
Typical 3.9 W (power-saving mode with limited IR)
Connectors RJ45 10BASE-T/100BASE-TX PoE
I/O: 4–pin 2.5 mm (0.098 in) terminal block for 1 supervised
digital input and 1 digital output (12 V DC output, max. load
25 mA)
3.5 mm mic/line in, 3.5 mm line out
HDMI type D
IR illumination Power-efficient, long-life and invisible 940 nm IR LED.
Range of reach up to 15 m (49 ft) depending on the scene
Optional power-saving mode to minimize IR LED power
consumption
Storage Support for microSD/microSDHC/microSDXC card and encryption
Recording to network-attached storage (NAS)
For SD card and NAS recommendations see axis.com
Operating
conditions
-20°C to 50 °C (-4 °F to 122 °F)
Maximum temperature (intermittent): 55 °C (131 °F)
Start-up temperature: -20 °C (-4 °F) to 55 °C (131 °F)
Humidity 10-85% RH (condensing)
Storage
conditions
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5-95% RH (non-condensing)
Approvals EMC
EN 50130-4, EN 55032 Class A, EN 55035, IEC/EN 61000-6-1,
IEC/EN 61000-6-2, FCC Part 15 Subpart B Class A,
ICES-3(A)/NMB-3(A), VCCI Class A, KC KN-32 Class A, KC KN-35,
RCM AS/NZS CISPR 32 Class A, CISPR 24, CISPR 35
Safety
IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471,
IS 13252
Environment
EN 50130–5 Class I, IEC 60068-2-1, IEC 60068-2-2,
IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27,
IEC 60068-2-78, IEC/EN 60529 IP66, EN 60529 IP69,
ISO 20653 IP6K9K, IEC/EN 62262 IK10+, NEMA 250 Type 4X
Network
NIST SP500-267
Dimensions Height: 131 mm (5.16 in)
Width: 209 mm (8.23 in)
Depth: 176 mm (6.93 in)
Height when corner–mounted: 116 mm (4.57 in)
Depth when corner–mounted: 148 mm (5.83 in)
Weight 1.6 kg (3.5 lb)
Included
accessories
Installation guide, Windows®
decoder 1-user license, AVHS
Authentication key, AXIS Device Microphone A, AXIS Connector
A 4–pin 2.5 straight, cable gaskets, RESISTORX® 20 bit
Optional
accessories
AXIS TQ9601 Conduit Top Box,
AXIS T8645 PoE+ over Coax Compact
AXIS Surveillance Cards
For more accessories, see axis.com
Video
management
software
AXIS Companion, AXIS Camera Station, video management
software from Axis Application Development Partners available
at axis.com/vms
Languages English, German, French, Spanish, Italian, Russian, Simplified
Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese
Warranty Axis 3-year warranty and AXIS Extended Warranty option, see
axis.com/warranty
a. This product includes software developed by the OpenSSL Project for use in the
OpenSSL Toolkit. (www.openssl.org), and cryptographic software written by Eric
Young (eay@cryptsoft.com).
